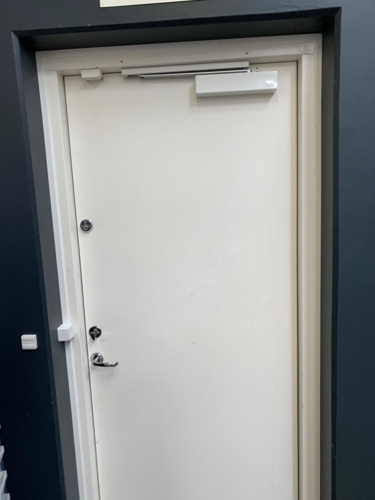

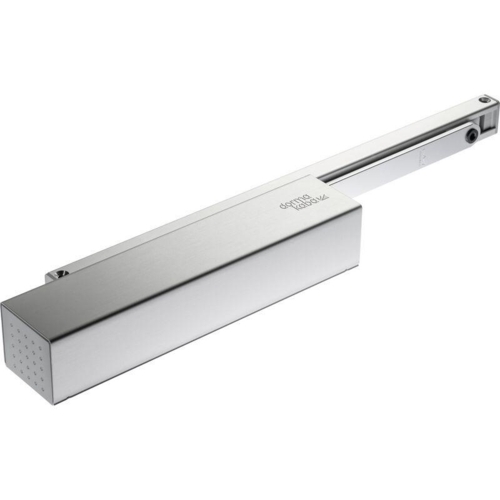

Dorma TS93G 2-5 With rail
-
Buy 7 and more for
948,00
( 758,40 )for each
NOTE the price only applies to webshop purchases.
TS 93 G. Lacquered aluminum, lacquered steel arm, plastic end caps. With opening brake and closing delay.
Translate is done by Google Translate

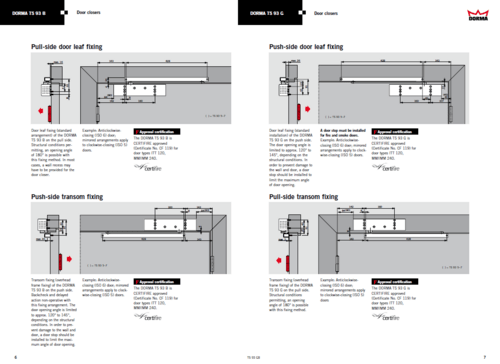

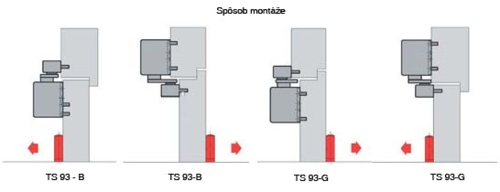

TS 93 G. Lacquered aluminum, lacquered steel arm, plastic end caps, with opening brake and closing delay. The opening angle is limited to approx. 120 ° -145 °, depending on conditions. For mounting opposite the hinge side of the door leaf. For frame depths greater than 26 mm, use an angle bracket for a slide rail. With stepless setting of closing force from strength EN 2 - 5 and EN 5 - 7. For external normal. doors and fire doors. Size EN 2-5: Fire doors in max. width 1280 mm Ordinary doors in max. width 1400 mm Size EN 5-7: Fire doors in max. width 1280 mm Ordinary doors in widths over 1400 mm Function and adjustment ranges for door closers: 1 = Fully controlled adjustable closing speed. 2 = Adjustable final pressure. 3 = Adjustable opening damping. 4 = Adjustable closing delay
For more information, please visit this product's webpage.
