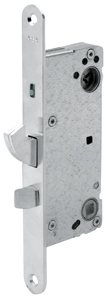

Fall and hook bolt lock with 360 ° key rotation and outdoor home function The lock box can be used for doors where safety locking with a bolt and door handle trap holding is desired, as well as outdoor and home function. The door handle trap is pulled into the lock case with the door handle. The chin bolt is pulled into the lock case with a wrench or knob. The lock is equipped with a switch button, can change which makes it outdoor safe and home safe. The inside is locked and opened with a twist handle. When the switch button is pressed, the knob is disengaged and the lock can only be opened with a key from both sides. For business and institutional use, the bolt can be blocked with the switch button, so that the bolt cannot be locked incorrectly with the knob.

Approvals and markings

EN12209 Grade 4, burglary protection. Can be used for shell, cell and object security up to and including security level 50, can use up to and including security level 60 in shell and cell security if the locking from the inside.

Technical specifications

Trap that tolerates a skew between door and frame of ± 4 °. Lock boxes with mandrel dimensions 50 and 70 mm can be fitted with Ruko safety cylinder or oval cylinder. Lock boxes with mandrel dimensions 35 mm can be mounted with Ruko oval cylinder. Available in 50 and 70 mm mandrel sizes. The post is made of glossy zinc-treated steel, which provides a resistant and neutral surface that fits into all environments. The trap is made of a piece of steel which is turned and with a glossy zinc treatment
