Double trap lock without switch for cylinder trap standby function. The lock case can be used for doors where you want to hold the door and the option of cylinder drop locking. The door handle trap is pulled into the lock case with the door handle. Cylinder trap and door handle trap are pulled into the lock case with a key or knob handle. The cylinder trap is locked in the locked position when the locking catch is pressed into the lock case.

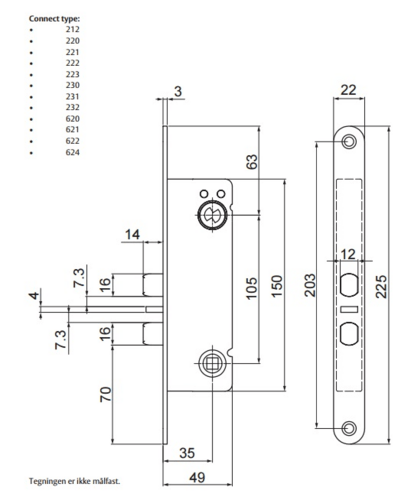

Technical specifications

The falls can tolerate a skew between door and frame of ± 4 ° Suitable for replacement from modular lock, when replacing in fire doors, non-flammable material must be stopped in the cavity. Lock boxes with mandrel dimensions 50 and 70 mm can be fitted with Ruko safety cylinder or oval cylinder. Lock boxes with mandrel dimensions 35 mm can be mounted with Ruko oval cylinder. Available in 35, 50 and 70 mm mandrel sizes. The post is made of glossy zinc-treated steel, which provides a resistant and neutral surface that fits into all environments. Turn of turned steel with glossy zinc treatment.
